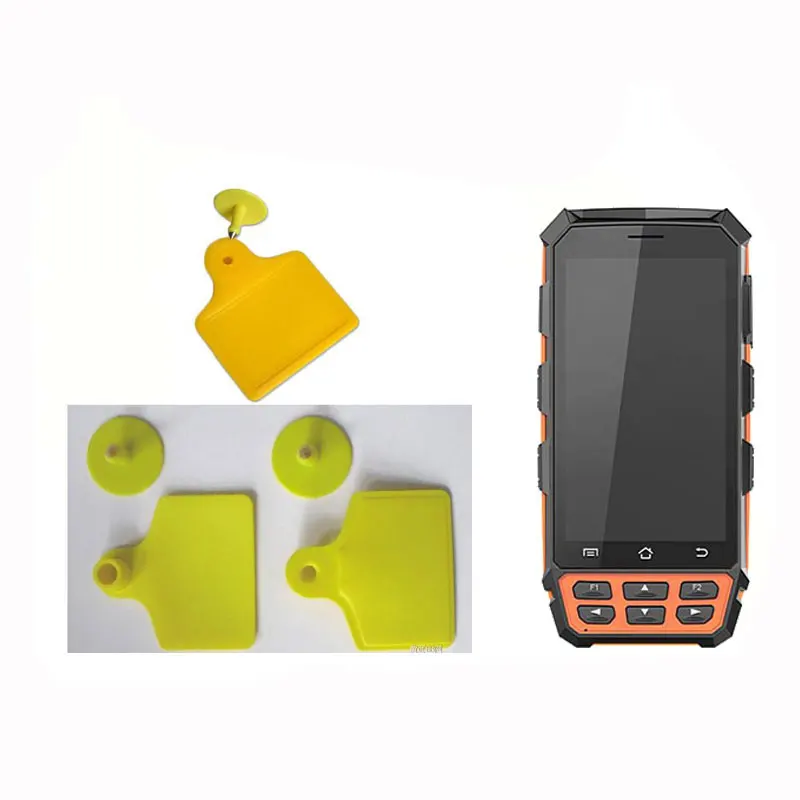

inventory management android handheld rfid reader uhf shenzhen manufacturer

FOB Reference Price:Get Latest Price
US $288-650 / Units | 1 Unit/Units android handheld rfid reader (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
VANCH
Model Number:
VT-71T
Item:
android handheld rfid reader
OS:
Android 5.1.1
Processor:
Cortex A53 quad core 1.3GHZ
Memory:
ROM: EMMC 16GB RAM: LPDDR2 2GB
standard configuration:
3G/4G WIFI bluetooth GPS
optinal configuration:
rfid fingerprints 1d 2d barcode scanner camera
battery:
4500mAh lithium polymer battery
Sealing:
IP65, IEC compliance.
Working temperature:
-20℃~50℃
Display:
touch screen with backlight visible in the sun
Supply Ability
Supply Ability:
1000 Unit/Units per Month android handheld rfid reader
Packaging & Delivery
Packaging Details
the color box of rfid handheld reader includes: reader 1pc, USB cable 1pc, charger
Port
shenzhen
Lead Time :
2-5 working days

inventory management android handheld rfid reader uhf shenzhen manufacturer



Specification

Feature

1. Support Bluetooth, WIFI, GPRS/WCDMA/4G and other communication method

2. Support 1D / 2D barcode scanner

3. Reading distance to EPC C1 GEN2/IS018000—6C Tag larger than 3 meters

4. Support 8 million pixel camera

5. Support infrared communication module

6: Android 5.1.1 O/S

NO

VH-71T

Processor

Cortex A53 quad core 1.3GHZ

Memory Capacity

ROM:EMMC 16GB  RAM: LPDDR2 2GB

OS

Android 5.1.1

Wireless communication

GPRS(standard)

GPRS, EDGE , 4-band 900/1800,850/1900

WCDMA(TDLTE FDDLTE +TDD WCDMA+GSM)

band 850/1900/2100,Cat.8 HSDPA Cat.6 HSUPA

WIFI(standard)

2.4G/5G, IEEE 802.11a/b/g/n/ac

bluetooth(Optional)

Bluetooth 4.0

Display

5.0 inch IPS screen, resolution 720*1280, HD Dead-Zone Free, visible in the sun

Micro SD Card

Support 32G MICRO SD card

GPS

Channel: 12 channels

Types of Reception: L1, C / A code, with carrier phase smoothing

Reacquisition: <1s

The latest ASIC chip; COAST patented algorithms; EVEREST multipath mitigation technology

Error range: + -5 meters

Data Transmitting

high speed USB 2.0 interface,3.5 stick interface for charging

Camera(Optional)

Back camera 8MP with flash light

Fingerprint(Optional)

TCS1 Biometric fingerprint(LC type),256x360pixel

ID card reading (Optional)

Ministry of Public Security ID card reading

1D(Optional Honeywell  N431X)

barcode

The scanner supports major 1D:Code 39,Code 93,Code 128,Codebar,EAN-13,EAN-8,UPC-A,UPC-E,ITF 14,UCC/EAN-128,ITF 25,Matrix 25,EAN-128,ISBN

Read range

0 cm~50 cm

Read rate

First read rate≥99%,error rate ≤0.01%,Rejection rate≤0.01%

2D(Optional)

Honeywell-6603

Read long range ,read rate high,decoding speed,error rate≤0.01%

RFID (optional)

UHF(915MHz/865MHz)

1.5-2M read range Read operation for 900MHz tag EPC C1 GEN2 / ISO18000-6C(with related tags and antennas), supports 865 ~ 868MHz or 920 ~ 925MHz

HF(13.56MHz)

0 ~ 7cm read and write distance for ISO15693, ISO14443 dual-protocol 13.56MHz tags (tag and antenna related)

LF

125K/134.2K animal tag

PSAM

Support two PSAM card

HF(CPU card)

Support CPU card read and write,use with PSAM

Active Near Field Communication (optional)

Active 2.45G

Outdoor 200m,200 tags can be read all at once

433M

Read range more than 200m,Adjustable Distance

ZIGBEE

Applicable wireless networking data collection

Battery performance

battery

4500mAh lithium polymer battery, standby time: more than 200 hours, working time: more than 10 hours, charging AC adapter (2A)

standby time

After the battery is fully charged, turn off the wireless communication function standby 360 hours, to normal operation

Charge time

<4.5 hours

Charge work time

More than 10 hour (full charge one time)

Work environment

Working temperature

-20℃~50℃

Storage Temperature

-20℃~70℃

Storage humility

10%~90%RH,no condensing

Physical parameters

Weight

Less than 450g(Including battery, charger does not include)

size

170(longth)×85(wideth)×?(high)± 2 mm

attchment

standard

A lithium battery, charging head 1, DC charging cable 1, USB data cable 1

71T3
71T5
company information

Shenzhen Vanch Intelligent Technology CO.,LTD was established in 2005, the pioneer of rfid hardware manufacturer and system solution privider for different applications.

Our core competencies are RFID uhf handheld readers, RFID uhf intergrated reader and RFID UHF tags.

We have many advantages:
*Firstly, we have been focusing on R&D, productions, sales and implementation of UHF RFID handheld reader, UHF RFID antenna and UHF RFID Tag for more than 11 years.
*Secondly, we are good at designing all kinds of RFID solution for different industries or applications.
*Thirdly, our products has been sold to all over the world, they are serving for government, big retailer, animal farmers, big manufacturing company and logistic company as well as vehicle managmenent/transportation etc.

*Fourth, we have own professional staffs in RFID, no matter what production, research or engineer or sales

.
