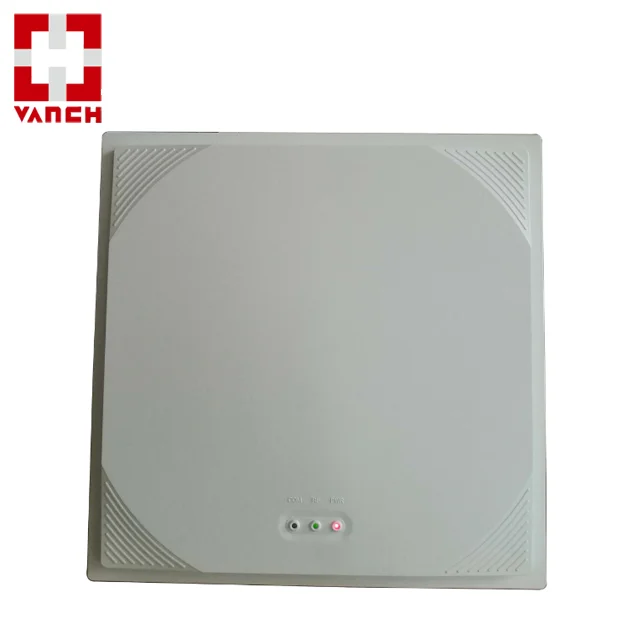

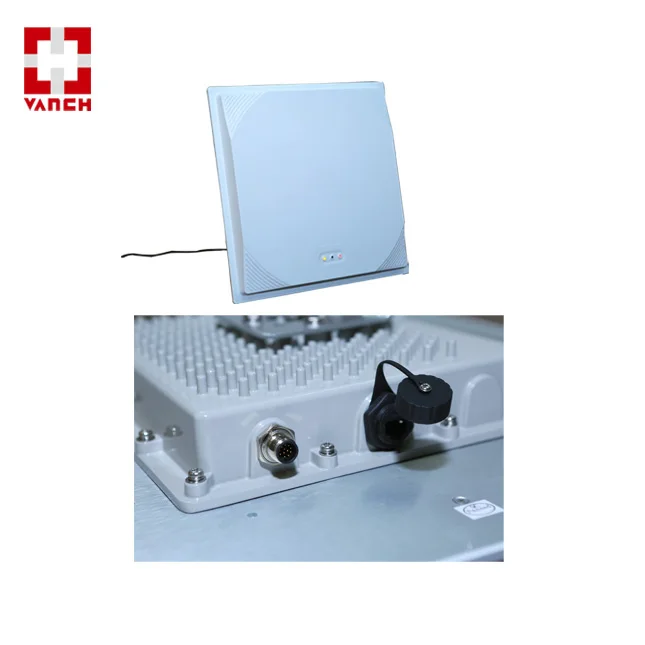

900mhz Long Range UHF RFID 12dbi Antenna Reader

FOB Reference Price:Get Latest Price
US $399-445 / Sets | 1 Set/Sets UHF RFID 12dbi Antenna Reader (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
VANCH
Model Number:
VI-88TR
Frequency:
902-928/ 865-868MHz(or customized)
Read range:
6 to 13 m (depends on tag)
Dbi:
12dBI
Protection grade:
IEC IP54
Dimension:
460*460*65mm
RF output:
30dBm adjustable;
Operation temperature:
-20 to +60 centigrade degree
Software:
Provide with API SDK and VC, VB, Java
Communication interface:
TCP/IP,RS232,RS485,Wiegand26/34
Application:
Vehicle Control, Parking System,Animal Management
Supply Ability
Supply Ability:
1000 Unit/Units per Month access control rfid reader
Packaging & Delivery
Packaging Details
1pcs/paper box caton/900mhz Long Range UHF RFID 12dbi Antenna Reader
Port
shenzhen ,guangdong
Lead Time :
3-5 work day after receipt payment



900mhz Long Range UHF RFID 12dbi Antenna Reader



product description:



  • 860-960MHz UHF long distance reader with 8-15meters reading distance.
  • The shell is made of high-strength aluminum die-casting, durable, LED diagnostic and status indicators for easy installation.
  • Radio technology with USA company reader module(IndyR2000 Impinj chips), coupled with high-performance multi-tag identification algorithms, performance comparable to European and American products.
  • Compatible with ISO18000-6C and ISO18000-6B protocols can quickly switch between dual-protocol, simultaneous dual-protocol label reading.
  • IP67, compact size, industrial design;
  • Low-power, low-voltage design ideas, combined with the remote diagnostics software through the network, to ensure product safety and stability of long-term trouble-free operation.
  • lIntelligent monitoring software running status, running days, 24 hours X365 do not crash.
  • l Products with domestic and foreign authoritative testing organizations Certification FCC, CE, SRRC certification
  • l Is the best choice for warehousing logistics supply chain equipment, fixed asset management, personnel, vehicle traffic management, factory production line manufacturing



Product features:



1. Full support for compliance with EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C / ISO18000-6B standard electronic tag;

2. Operating frequency 860-868MHZ, 902-928MHZ (according to different countries or regions for adjustment);

3. Support a variety of ways RS232, RS485 and TCP / IP networks and wireless communications;

4. RFID reader, integrated antenna integrated design, ease of installation, rapid deployment;

5. The output power of 30dbm adjustable, inventory tags peak velocity> 100 / sec;

6. supports active mode, command mode, trigger mode and other modes;

7. The reader beeps and LED status indication; support firmware upgrade online via the communication interface;

8. reader provides two opto-isolated inputs 2 opto-isolated outputs I / O interfaces for application integration products;



Specification



Item number (Order Code)

VI-88TR

Performance

Frequency range

860Mhz – 960Mhz(Can be customize)

dbi

12dbi  (8-15m reading distance)

Working area

US, Canada and other regions following U.S. FCC

Europe and other regions following ETSI EN 302 208 with & without LBT regulations

Mainland China,Japan,Korea, Malaysia,Taiwan

FM mode

FHSS or fixed frequency set by software

RF output

20-33dBm adjustable;50load

Reading ability

> 100 tags/seconds

Tag Cache

800tags @ 96 bit EPC

RSSI function

Support

Antenna Connection Protection

Support

Environmental temperature monitoring

Support

Quantity of antenna

With embedded one SMA port

Communication interface

10M/100M enthernet,RS232,RS485

Communication speed

Serial rate 9600~115200bps,RJ45 is 10Mbps

Reliable Firmware Upgrade

Scalable upgrade mechanism

General input / output (GPIO)

2 opto-isolated inputs 2 opto-isolated output

Software Interface

With free SDK

Tag operation performance

Reading distance

9dbi antenna with 3-12meters distance(depends on tag)

Air interface protocol

EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C/ ISO18000-6B

Maximum receiver sensitivity

-82 dBm; Maximum return loss: 10 Dbm

Mechanical electrical properties

Dimension

460(L)*460(W)*65(H)mm(not include the mounting bracket and external wiring)

Power

With 220V AC input, + 12V3A DC output power converter

Gross weight

3KG

Humidity

5% to 95%, non-condensing

Protection grade

IEC IP67

Operation temperature

-20 ºC to +60  ºC

Storage temperature

-20°C to 85°C

Certificate

FCC,CE



VI-88TVI-88T 0VI-88T 3RFID Reader 2



RFID Application

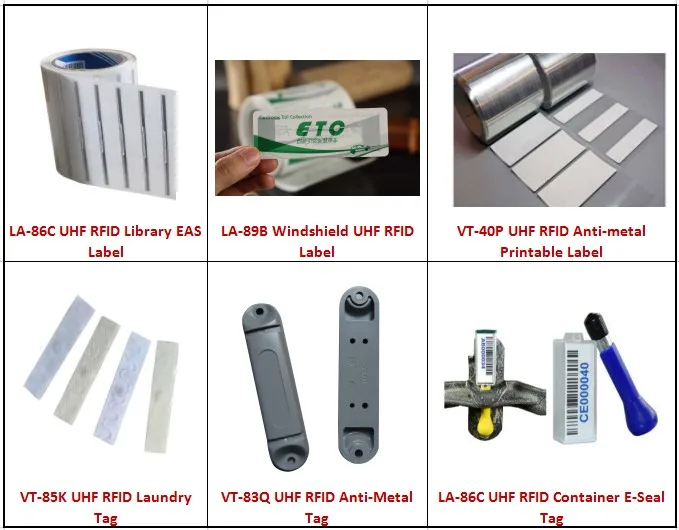

We offer RFID reader and RFID tags,RFID labels in different application



1.Warehouse management solution

(Apparel warehouse/shoes warehouse/supermarket...)

2.Assets management solution

(jewellery/tablets/cumputers/books/files/tyer/trunk/guns.....)

3.Retail store management solution

4.Vehicle Tracking

5. Library Management

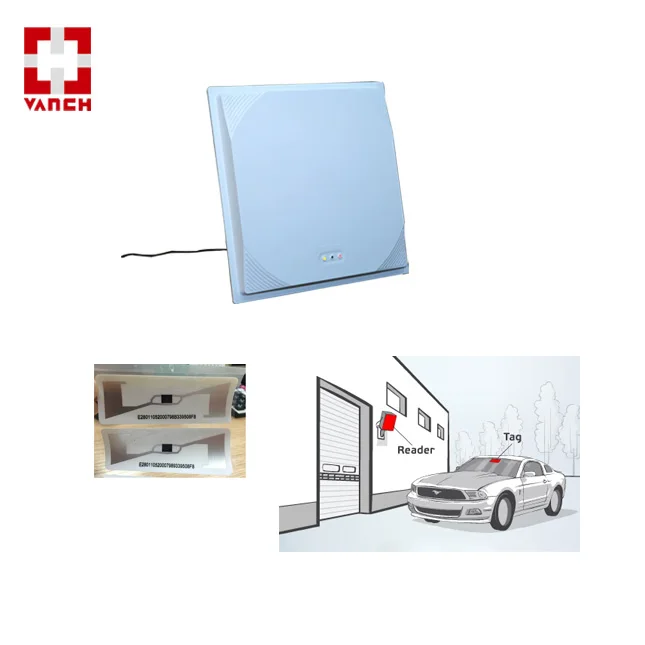

long range parking management UHF RFID reader

long range parking management UHF RFID reader

long range parking management UHF RFID reader

Applications
car passing RFID tagVanch-rfid readers

long range parking management UHF RFID reader
long range parking management UHF RFID reader

 long range parking management UHF RFID readerRFID Reader 11RFID Reader 13RFID Reader 12

FAQ

 After-Sales Service

* Training how to instal the reader, training how to use the reader.

* Engineers available to service machinery overseas.

We will offer free SDK, DEMO, User manual to you after you order our reader.

FAQ

1. You are factory or trading company?

    We are original equipment manufacturer in RFID UHF reader for over 10 years.

2. How is your QC?

    We have strict QC process and all the products will be 100% testing before shipping.

3. What is your payment term?

    100% payment should be paid before shipping.

4. What is your payment way?

    T/T, Western Union, Paypal

5. What is your warranty?

    within 1 year for the reader

6. Can I get technical support from you?

    Sure. Our sales are of all good knowledge in the field. Besides, we have a technical team behind to support.
