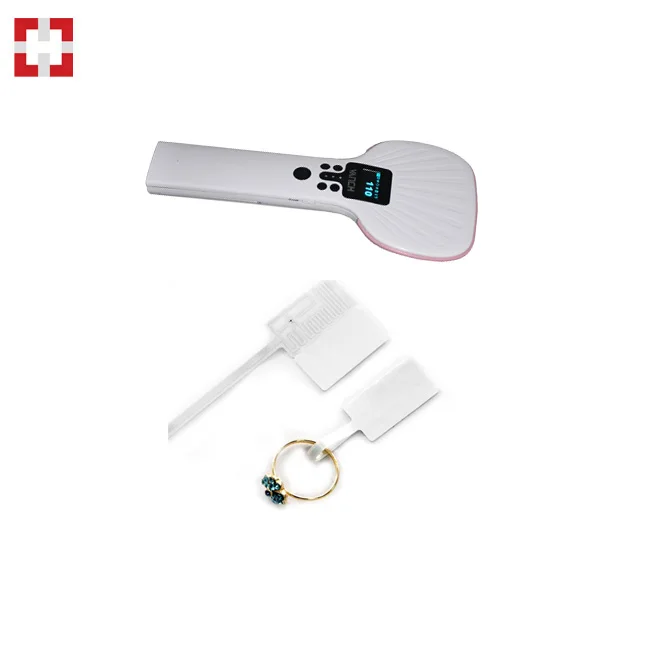

rfid bluetooth reader for jewelry management system

FOB Reference Price:Get Latest Price
US $480-600 / Pieces | 1 Piece/Pieces rfid bluetooth reader (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Vanch
Model Number:
VH-88
Material:
ABS
Frequency:
865-868mhz/902-928mhz
Protocol:
ISO18000-6C/EPCG2
Read range:
4-5m ( tag performance dependent)
Communication interface:
USB2.0, bluetooth
Option function:
1d/2d barcode
Unit dimension:
270(l)*124 (w)*35(h)mm
Battery:
18650 lithium battery(3.7V,3000mAH)
Weight:
250g
IP Grade:
IEC IP65
Supply Ability
Supply Ability:
500 Piece/Pieces per Month handheld rfid reader
Packaging & Delivery
Packaging Details
standard carton box for package
Port
shenzhen
Lead Time :
5-7 days after payment done.

rfid bluetooth reader for jewelry management system

Product Description



Introduction

The shape structure adopts ergonomic design ideas and has a good grip experience.

With muti-function optional, 1D/2D barcode scanner, uhf rfid read/write etc. Functions.

1.3 inch LCD screen, could show information of reader and the tags id being read.

More indications of working status, built-in vibration motor, power, buzzer to meet the instructions in various working environments.

Use changeable lithium battery 18650.

Bluetooth communication interface is convenient to connect with smart terminals(smart phone, smart tablet etc.)

Software integration is fast and efficient, providing DLL development files based on Android platform.



Description



Model No.

VH-88

Performance

Frequency

865-868MHZ,902-928MHZ(customized optional)

FM mode

Wide spectrum FM (FHSS) or fixed frequency, software settings

RF output

10~30 dBm adjustable

Antenna

High gain PCB antenna

Communication interface

USB2.0, Bluetooth 4.0

Option function

1D/2D barcode scanner,

Tag Operation Performance

Read range

Read range>4-5m, write range>1-2m

Air protocol

ISO-18000-6C(EPC G2)/ ISO-18000-6B

Mechanical and Electrical performance

Unit dimension

270(l)*124 (w)*35(h)mm

Battery

18650 lithium battery(3.7V,3000mAH)

Indication method

Vibration, buzzer, LED, LCD

Storage card capacity

2Gb(NandFlash)

Standby Time

30 hours, could be scanned 3hours after one time full charged

Weight

250g

Humility

5% to 95%, non-condensing

IP Grade

IEC IP65

Working Temp.

-20ºC to +50ºC

Storage Temp.

-25°C to 70°C





Application

 uhf rfid bluetooth reader could be used for rfid asset tracking, rfid jewelry management system etc.

jewelry management 1.jpg



Vanch projects

Not only for this, we did some other related projects as well, pls check the project pictures.

Welcome to contact me at mail beata at vanch.net if you have any interest!

warehouse .jpg89F.jpgVT-100B.jpg
