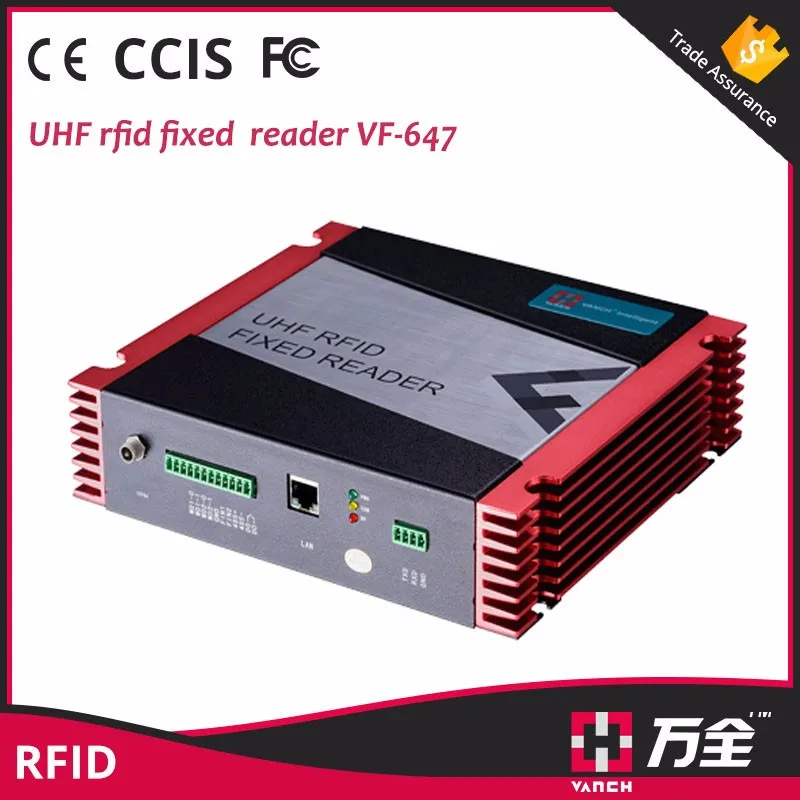

rfid inventory system long range uhf rfid reader and rfid antenna 12dbi

FOB Reference Price:Get Latest Price
US $560-600 / Pieces | 1 Piece/Pieces rfid inventory system (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Vanch
Model Number:
VF-647
item:
rfid inventory system
working frequency:
902-928MHz / 865-868MHz or custom
Protocol:
EPC gen 2 ISO18000-6B / 6C
read-write speed:
> 500 pcs/second
Interface:
TCP/IP RS232 RS485 Wiegand26/34 4G GPRS Bluetooth wifi
ingress protection:
IEC IP51
operating temp:
-20 to +60 degree centigrade
Certificated:
FCC CE
warranty:
1 year
Dimension:
200 (L) * 200 (W) * 35 (H) mm
Supply Ability
Supply Ability:
1000 Piece/Pieces per Month rfid inventory system
Packaging & Delivery
Packaging Details
1pcs/ caton
packed in Carton box with foam and plastic bag to make safe transportation.
Port
shenzhen
Lead Time :
5-7 working days after receipt payment

rfid inventory system long range uhf rfid reader and rfid antenna 12dbi



Specification



Frequency range

860-868MHZ,902-928MHZ(can be customized)

Frequency modulation

FHSS or fixed-frequency,  can be set by software

RF output

+10.0 to +32.5 dBm;50 ohm load.

The number of antennas

1, 2, 4 TNC male antenna connections

Communication interface

10M/100MAdaptive Ethernet,RS232,RS485,Wiegand26/34 interface

Communication rate

Serial rate 9600~115200bps,RJ45 is 10Mbps

Secure firmware upgrade

The upgrade mechanism can be extended

input / output (GPIO)

2 inputs, 1 output

Certifications

CE/FCC

Application software

Supply API SDK and VC and VB, Delphi application routines

Tag Operation Performance

Reading distance

8dbi Antenna configuration, typical read range: 3 to 25 m (depends on tag)

Protocol

EPC global UHF Class 1 Gen 2 / ISO 18000-6C/ ISO18000-6B

Maximum receiver sensitivity

-82 dBm; Maximum return loss: 10 DBm

Mechanical electrical performance

Dimension

200 (L) * 200 (W) * 35 (H) mm

Power

With 220V AC input, the output of +12 V/3A DC power converter

Weight

1.1KG

Humidity

5% to 95%, Non-condensing

IP rating

IEC IP51

Operating Temp.

-20 ºC to +60  ºC

Storage Temp.

-40°C to 80°C

VF-647E-1

7475747 w747 1

company information

Shenzhen Vanch Intelligent Technology CO.,LTD was established in 2005, the pioneer of rfid hardware manufacturer and system solution privider for different applications.

Our core competencies are RFID uhf handheld readers, RFID uhf intergrated reader and RFID UHF tags.

We have many advantages:
*Firstly, we have been focusing on R&D, productions, sales and implementation of UHF RFID handheld reader, UHF RFID antenna and UHF RFID Tag for more than 11 years.
*Secondly, we are good at designing all kinds of RFID solution for different industries or applications.
*Thirdly, our products has been sold to all over the world, they are serving for government, big retailer, animal farmers, big manufacturing company and logistic company as well as vehicle managmenent/transportation etc.

*Fourth, we have own professional staffs in RFID, no matter what production, research or engineer or sales

.
