12dbi 15m long range uhf rfid reader

FOB Reference Price:Get Latest Price
US $230-280 / Pieces | 2 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Vanch
Model Number:
VI-88TF
Frequency:
865-868MHz/902-928mhz
FM mode:
FHSS or fixed frequency set by software
RF output:
20-30dBm adjustable
Communication interface:
RS232/RS485/Wiegand/TCP/IP
API:
C#, C++, JAVA etc.
Working status display mode:
LED indicator, buzzer
Read range:
3-12m (tag performance dependant)
protocol:
EPCG2/ISO18000-6C
Dimension:
450(L)*450(W)*40(H)mm
Application:
rfid car parking, vehicle management, access control system etc.
Supply Ability
Supply Ability:
2500 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Standard carton box for package
Port
Shenzhen
Lead Time :
3-5 days after payment received

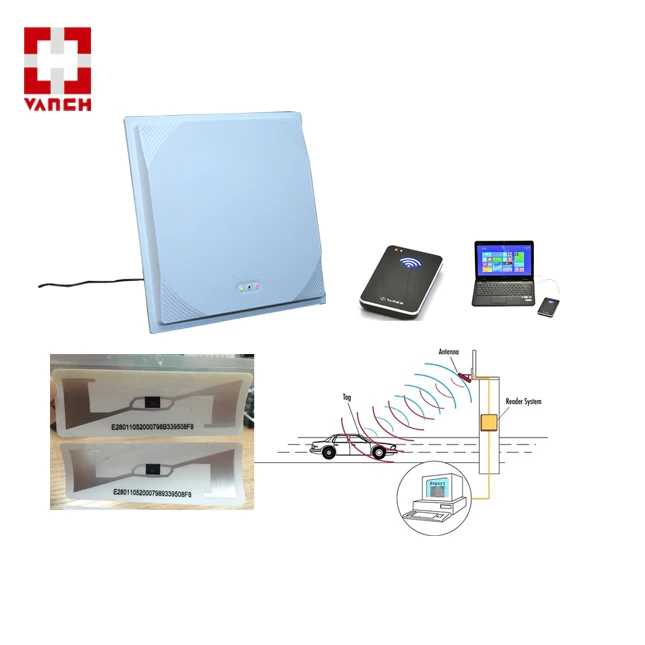

12dbi 15m long range uhf rfid reader

Product Description

         Shell is industrial design, durable and compatible with harsh environment;

Radio technology with USA company reader module(IndyR2000 Impinj chips), coupled with high-performance multi-tag identification algorithms, performance comparable to European and American products;

Variety of ways RS232, RS485 and TCP / IP communications;

Intelligent monitoring software running status, running days, 24 hours X365 do not crash;

Products with domestic and foreign authoritative testing organizations Certification FCC, CE, SRRC certification;

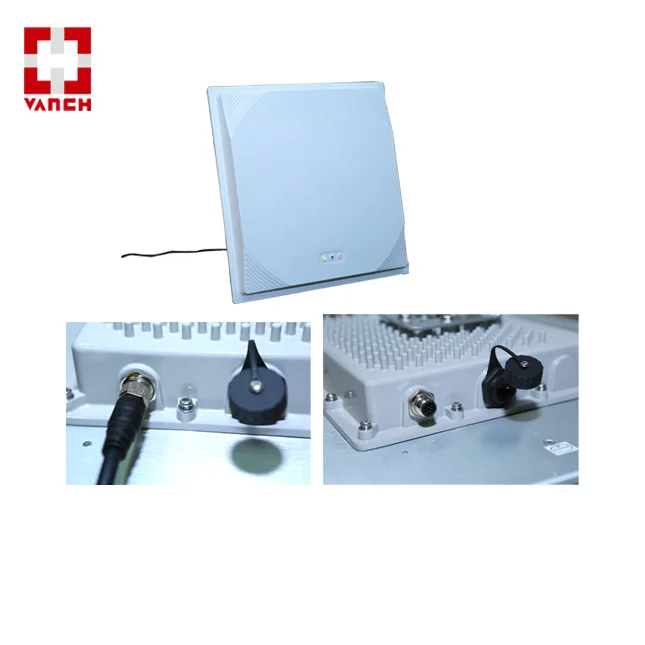

Bottom shell is designed with Bracket to easy installation.

Application

 VI-88T 4.jpg

VI-88T 1.jpg



Specification



Model No.

VI-88T

Performance

Frequency range

860Mhz – 960Mhz(Can be customize)

Working area

US, Canada and other regions following U.S. FCC

Europe and other regions following ETSI EN 302 208 with & without LBT regulations Mainland China,Japan,Korea,Malaysia,Taiwan

FM mode

FHSS or fixed frequency set by software

RF output

20-30dBm adjustable;50load

Quantity of antenna

one

Communication interface

RS232,RS485,TCP/IP

Communication speed

Serial rate 9600~115200bps, RJ45 is 10Mbps

Reliable Firmware Upgrade

Salable upgrade mechanism

General input / output (GPIO)

Optically isolated 1 input, 1 output;

Software Interface

With free SDK

Working status display mode

LED indicator, buzzer

Reading distance

12dbi antenna with 10-20meters distance(depends on tag)

Air interface protocol

EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C/ ISO18000-6B

Maximum receiver sensitivity

-82 dBm; Maximum return loss: 10 Dbm

Mechanical electrical properties

Dimension

450(L)×450(W)×40(H)mm

Back cavity size

180(L)×180(W)×31(H)mm(internal)

Polarization mode

Right-hand circular polarization

Half-power lobe width (°)

level:35

Vertical:35

G.W.(kg)

4KG

Shell material

Anti-UV anti-aging material ABS+PP

Power supply

Working voltage to 124V

Humidity

5% to 95%, non-condensing

Protection grade

IEC IP67

Operation temperature

-20ºC to +6C

Storage temperature

-2C to 85°C

Connector form

Round waterproof M10 pin socket

Certificate

FCC, CE

Mounting bracket method

Galvanized iron bracket, adjustable read angle, MK004 L-type steel clip code

Pole diameter (mm)

35~50
