TCP/IP RS232 long range UHF RFID reader for parking system

FOB Reference Price:Get Latest Price
US $220-255 / Sets | 2 Set/Sets UHF RFID reader (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
VANCH
Model Number:
VI-86F
Protocol:
ISO18000-6C (EPC GEN2)
Frequency:
902-928/ 865-868MHz(or customized)
Product Name:
UHF RFID Integrated antenna Reader
Inside antenna:
9dBI antenna
Read range:
4 to 6 m (depends on tag)
RF output:
30dBm adjustable
Dimension:
306(L)*306(W)*25(H)mm
Communication interface:
LAN,RS232,RS485,Wiegand26/34,IEEE 802.11
Software:
Provide with API SDK and VC, VB, Java
Application:
Vehicle Control, Parking System,Asset, Animal Management
Supply Ability
Supply Ability:
1000 Unit/Units per Month UHF RFID reader
Packaging & Delivery
Packaging Details
1pcs/paper box caton/TCP/IP RS232 long range UHF RFID reader for parking system
Port
shenzhen ,guangdong
Lead Time :
3-5 work day after receipt payment
Video Description

           parking management long range UHF RFID reader TCP/IP RS232 long range UHF RFID reader for parking system

Product Description

Application: logistics, access control, parking management, manufacturing control and etc.



Features:

1. Reliable industry structure design, workable in varied severe environment.

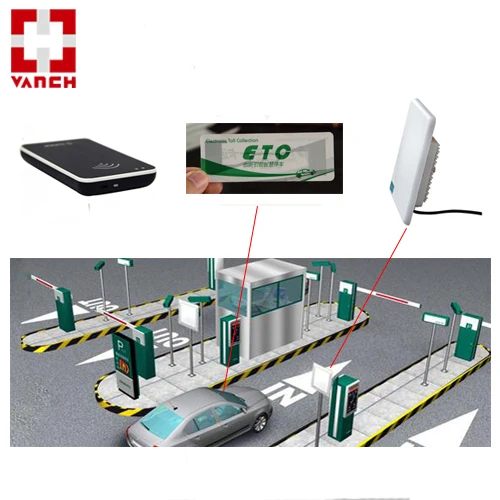

2. Parking management: Long range intelligent parking management and automatic charge without stop the car

3. Production line management: Goods identification for production flow

4. Auto Access control: Long range access control management for custom, sea port

5. Logistics and warehouse management

6. People auto registry for important meeting or exhibition

7. Automatic weighing and data capture.







Specification

long range parking management UHF RFID reader

Model#

VI-86F



Performance Index

Frequency range

902-928MHZ/865-868MHz(or customized)

FM mode

FHSS or fixed frequency, set by the software

RF output

30dBm adjustable;50Ω load

Communication interface

LAN,RS232,RS485,Wiegand26/34,IEEE 802.11

Communication rate

Serial port 9600~115200bps,RJ45 10Mbps

GP I/O interface

12 pin + 4 pin

Power dissipation

average<10W

Application software

Provide with API SDK and VC, VB, Java application routines

Tag Operation Performance

Reading distance

5~8m equipped with 9dbi antenna(tag dependent)

Air interface

EPC global UHF ISO-18000-6C(EPC G2), ISO-18000-6B

Mechanical and Electrical Performance

Dimension

306(L)*306(W)*25(H)mm(excluding mounting bracket and external wiring)

Power supply

Equipped with power convertor 220V AC input, +9V/3A DC output

Weight

2.6Kg

Installation

Embrace rod mounting

Diameter of support rod

40-50mm

Humidity

5% to 95%, non-condensing

Protection grade

IEC IP54

Operation temperature

-20 ºC to +60  ºC





 VI-86F-2.jpgVI-86F-3.jpgVI-86F-4.jpgVI-86F Demo.jpg



RFID Application

We offer RFID reader and RFID tags,RFID labels in different application



1.Warehouse management solution

(Apparel warehouse/shoes warehouse/supermarket...)

2.Assets management solution

(jewellery/tablets/cumputers/books/files/tyer/trunk/guns.....)

3.Retail store management solution

4.Vehicle Tracking

5. Library Management

long range parking management UHF RFID reader

long range parking management UHF RFID reader

long range parking management UHF RFID reader

Applications
car passing RFID tagVanch-rfid readers

long range parking management UHF RFID reader
long range parking management UHF RFID reader

 long range parking management UHF RFID readerRFID Reader 11RFID Reader 13RFID Reader 12

FAQ

 After-Sales Service

* Training how to instal the reader, training how to use the reader.

* Engineers available to service machinery overseas.

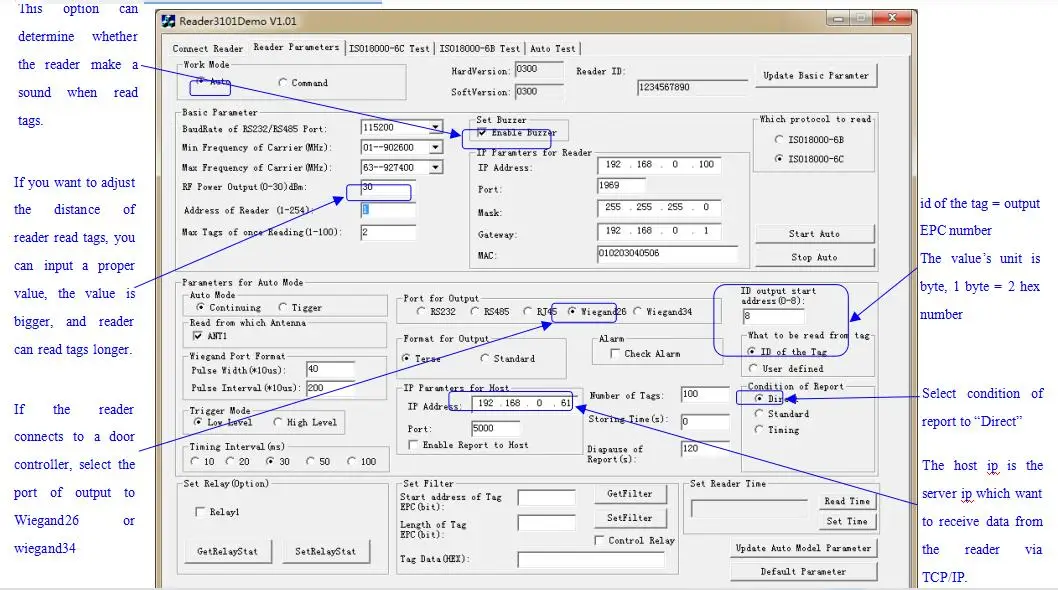

* We will offer free SDK, DEMO, User manual to you after you order our reader.

FAQ

1. You are factory or trading company?

    We are original equipment manufacturer in RFID UHF reader for over 10 years.

2. How is your QC?

    We have strict QC process and all the products will be 100% testing before shipping.

3. What is your payment term?

    100% payment should be paid before shipping.

4. What is your payment way?

    T/T, Western Union, Paypal

5. What is your warranty?

    within 1 year for the reader

6. Can I get technical support from you?

    Sure. Our sales are of all good knowledge in the field. Besides, we have a technical team behind to support.
