Passive 4Port UHF RFID Fixed Reader Long range

FOB Reference Price:Get Latest Price
US $489-538 / Units | 2 Unit/Units Passive 4Port UHF RFID Fixed Reader Long range (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
VANCH
Model Number:
VF-747
Product Name:
4 port fixed uhf rfid reader
Frequency:
860-868MHZ,902-928MHZ(can be customized)
Protocol:
ISO18000-6C (EPC GEN2)
Interface:
TCP IP/RS232/RS485/Wiegand26/34
Read range:
3-12m
The number of antennas:
4 TNC Ports
Dimension:
200 (L) * 200 (W) * 35 (H) mm
Power supply:
AC adapter 220V input
Application software:
API SDK and VC and VB, Delphi application
Application:
Warehouse Management/asset tracking/parking management
Supply Ability
Supply Ability:
800 Unit/Units per Month UHF RFID Fixed Reader Long range
Packaging & Delivery
Packaging Details
Packing: Each item in carton box with bubble bag protection
Size: will depend on the amount of the reader bought at one time
and customized packaging available to provide
Port
Shenzhen,China
Lead Time :
Shipped in 5 days after payment



Passive 4Port UHF RFID Fixed Reader Long range

Product Description



Shell adopt high strength die-casting aluminum, highlighting the product quality

Adopt high-performance Impinj UHF reader chip IndyR2000,the best Intensive reader mode,the maximum read speed and optimum read ranges.

Application: logistics supply chain,fixed asset management and library and archive management etc.









Specification

VANCH RSSI GPIO 4 antenna ports UHF RFID fixed reader for Management System

Model

VF-747



Performance Index

Frequency range

860-868MHZ,902-928MHZ(can be customized)

Frequency modulation

FHSS or fixed-frequency,  can be set by software

RF output

+10.0 to +32.5 dBm;50 ohm load.

The number of antennas

4 TNC male antenna connections

Communication interface

10M/100MAdaptive Ethernet,RS232,RS485,Wiegand26/34 interface

Communication rate

Serial rate 9600~115200bps,RJ45 is 10Mbps

Secure firmware upgrade

The upgrade mechanism can be extended

input / output (GPIO)

2 inputs, 1 output

Certifications

CE/FCC

Application software

Supply API SDK and VC and VB, Delphi application routines

Tag Operation Performance

Reading distance

8dbi Antenna configuration, typical read range: 3 to 25 m (depends on tag)

Protocol

EPC global UHF Class 1 Gen 2 / ISO 18000-6C/ ISO18000-6B

Maximum receiver sensitivity

-82 dBm; Maximum return loss: 10 DBm

Mechanical electrical performance

Dimension

200 (L) * 200 (W) * 35 (H) mm

Power

With 220V AC input, the output of +12 V/3A DC power converter

Weight

1.1KG

Humidity

5% to 95%, Non-condensing

IP rating

IEC IP51

Operating Temp.

-20 ºC to +60  ºC

Storage Temp.

-40°C to 80°C

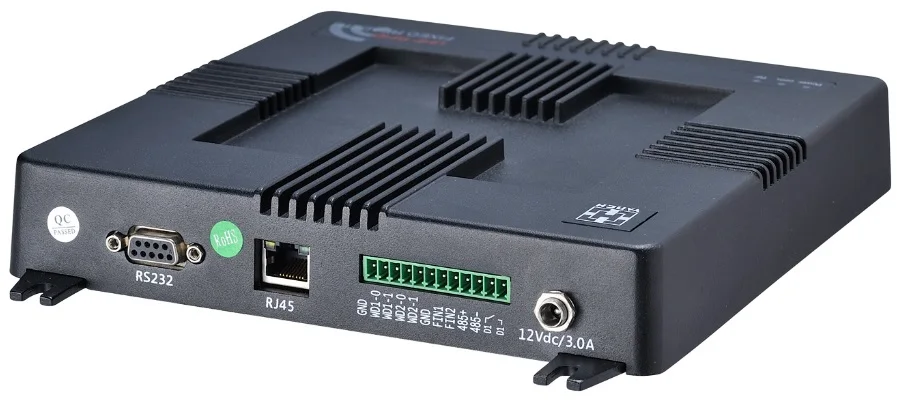

VF-747 front side747 1warehouse tracking 3

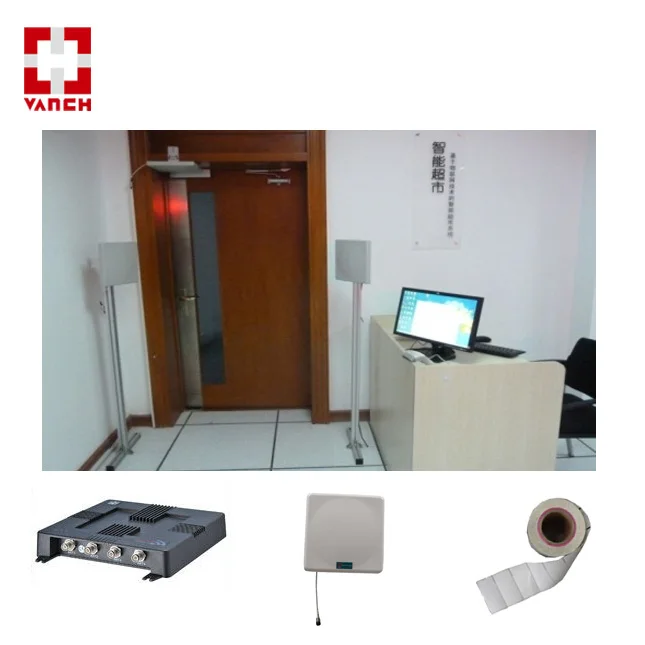

Applications:

1. Management of Jewerly management,warehousing inventory, assets, Library, access control, etc.

2. Various occasions when data collection is needed.



For more, pls contact us at any time!

 RFID tag.JPGVanch-rfid readers.JPG



 RFID Reader 11RFID Reader 13RFID Reader 12



FAQ

 After-Sales Service

* Training how to instal the reader, training how to use the reader.

* Engineers available to service machinery overseas.

* We will offer free SDK, DEMO, User manual to you after you order our reader.

FAQ

1. You are factory or trading company?

    We are original equipment manufacturer in RFID UHF reader for over 10 years.

2. How is your QC?

    We have strict QC process and all the products will be 100% testing before shipping.

3. What is your payment term?

    100% payment should be paid before shipping.

4. What is your payment way?

    T/T, Western Union, Paypal

5. What is your warranty?

    within 1 year for the reader

6. Can I get technical support from you?

    Sure. Our sales are of all good knowledge in the field. Besides, we have a technical team behind to support.
