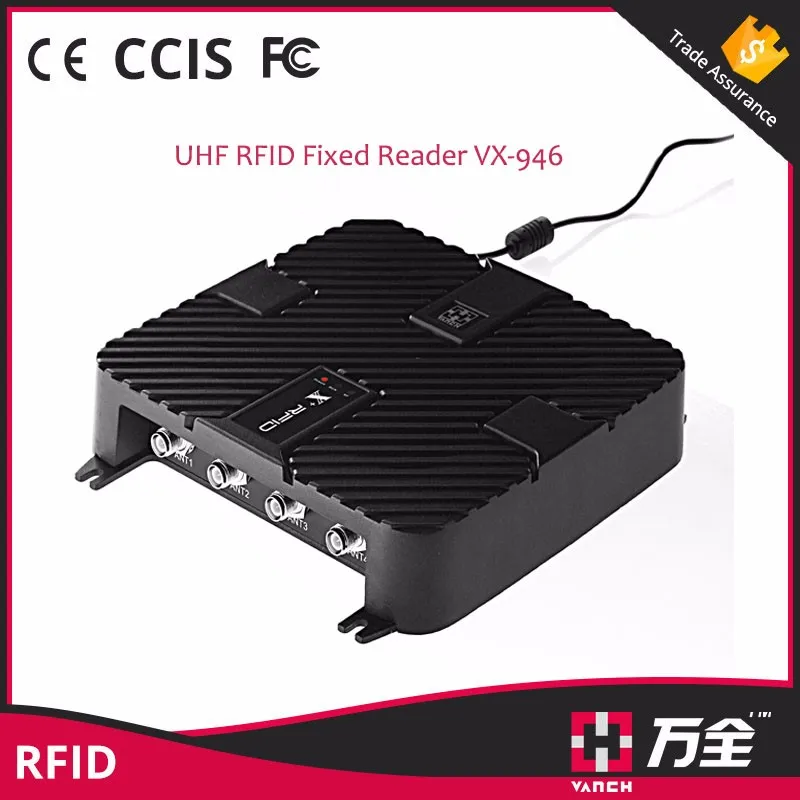

R2000 long-range Passive UHF RFID Card Reader

FOB Reference Price:Get Latest Price
US $500-550 / Sets | 1 Set/Sets Long range reader (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
VANCH
Model Number:
VX-946
Item:
UHF rfid fixed reader
Antenna interface:
4-Port
Read Range:
5-15 Meters
Frequency:
860-868,902-928MHZ
Power supply:
12VDC 3A
Protocol:
Gen 2 / ISO 18000-6B/C
Size:
235 (L) * 211 (W) * 40 (H) mm
Interface:
RS232,RS485,Wiegand26/34 interface
Application:
Asset Tracking/Warehouse Management/Vehicle Control
Weight:
2.5KG
Supply Ability
Supply Ability:
1500 Unit/Units per Month mobile rfid reader
Packaging & Delivery
Packaging Details
Safe shipping carton for international transportation
Port
Shenzhen, China
Lead Time :
3 working days for sample order

 R2000 long-range Passive UHF RFID Card Reader

Introduction:



1.Shell adopt high strength die-casting aluminum,firm and durable, good for heat dissipation when work for a long time in outdoor environment.

2.Adopt Impinj IndyR2000 chip,with high-performance multi-tag identification algorithms.

3.Compatible with ISO18000-6C and ISO18000-6B protocol, can quickly switch , to realize simultaneously read double protocol labe.

4.Low power consumption and low voltage design, guarantee the products safe and stable operation for a long time.

5.With FCC,CE ect certification.

6.Application: logistics supply chain,fixed asset management,personnel/vehicle management,industrial manufacturing



Features



   1. Support EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C/ ISO18000-6B standard electronic tags;

2. Working frequency: 860-868MHZ,902-928MHZ(Can be adjusted according to the requirements of different countries or regions);

3. Support RS232,RS485 ,TCP/IP and wireless communication ways;

4. Support 1, 2, 4 external TNC antenna interface;

5. Output power up to 30 dbm(Adjustable), inventory tags peak velocity, > 700 PCS/SEC;

6. Support active ,command and trigger a variety of work modes;

7. Reading buzzer and LED status indicator;Support online upgrade firmware through communication interface;

8. Reader provide 2 road light isolated input, 2 road light output I/O interface, convenient for application integration;



Specification:



Descriptio Specification



Order code

VX-946

Performance Index

Frequency range

860Mhz – 960Mhz(Can be adjusted according to different countries or regions)

Supported regions

US, Canada and other regions following U.S. FCC

Europe and other regions following ETSI EN 302 208 with & without LBT regulations

Mainland China

Japan Korea

Malaysia

Taiwan

Frequency modulation

FHSS or fixed-frequency,  can be set by software

RF output

+20.0 to +30 dBm;50 ohm load.

Peak inventory speed

> 700 tags/sec

Tag Buffer Size

800 tags @ 96 bit EPC

Tag RSSI

Supported

Antenna Detector

Supported

Ambient Temp Monitor

Supported

The number of antennas

1 TNCantenna connector; 2 TNC antenna connector; 4 TNC antenna connectors for selections

Communication interface

10M/100MAdaptive Ethernet,RS232,RS485,Wiegand26/34 interface

Communication rate

Serial rate 9600~115200bps,RJ45 is 10Mbps

Secure firmware upgrade

The upgrade mechanism can be extended

input / output (GPIO)

2 inputs, 2 output

Application software

Supply API SDK and VC and VB, Java application routines

Tag Operation Performance

Reading distance

9dbi Antenna configuration, typical read range: 15 to 25 m (depends on tag)

Protocol

EPC global UHF Class 1 Gen 2 / ISO 18000-6C/ ISO18000-6B

Maximum receiver sensitivity

-82 dBm; Maximum return loss: 10 DBm

Mechanical electrical performance

Dimension

235(L) * 211 (W) * 40 (H) mm

RF Connector

TNC

Power

With 220V AC input, the output of +12 V/3A DC power converter

Weight

2.5KG

Humidity

5% to 95%, Non-condensing

IP rating

IEC IP51

Operating Temp.

-20 ºC to +60  ºC

Storage Temp.

-20°C to 85°C



Product show:



VX-946-2

VX-946

VX-946-6VX-946-5



FAQ

1. You are factory or trading company?

    We are original equipment manufacturer in RFID UHF reader for over 10 years.



2. How is your QC?

    We have strict QC process and all the products will be 100% testing before shipping.



3. What is your payment term?

    100% payment should be paid before shipping.



4. What is your payment way?

    T/T, Western Union, MoneyGram



5. What is your warranty?

    within 1 year.



6. Can I get technical support from you?

    Sure. Our sales are of all good knowledge in the field. Besides, we have a technical team behind to support.
